Rooftop Guardrail

Modular Freestanding Roof Edge Protection

Additional Photos

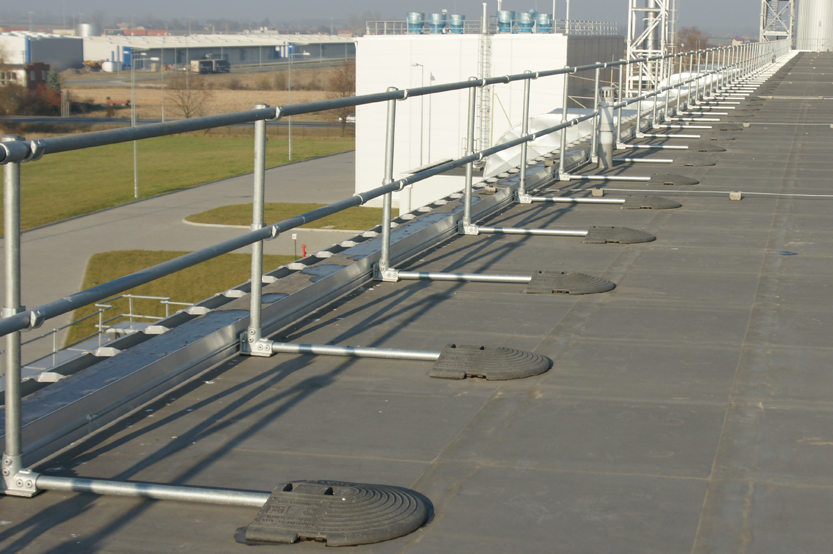

KEEGUARD FREESTANDING ROOF EDGE PROTECTION

If work at height cannot be eliminated, the Work at Height Regulations require that collective measures such as edge protection is considered in order to provide a safe working environment and minimise the risk of a fall.

The KeeGuard® range of collective protection includes standard vertical, raked, radiused and folding systems, and is designed to provide permanent edge protection for roof areas where regular access is required.

KeeGuard® provides a freestanding solution which does not require fixing into the roof’s structure or membrane and is suitable for installation on virtually any flat roof up to 10° slope.

When aesthetics are a concern, KeeGuard® Foldshield provides a more discreet system. The system can be lifted into place to provide collective protection when work is in progress and then folded back down when finished.

The KeeGuard® range is fully tested and meets or exceeds current rooftop safety requirements including EN13374 Class A.

  • Provides collective protection for all working on a roof
  • Works on a proven counterbalance system
  • No penetration of the roof membrane
  • Suitable for use on concrete, asphalt, PVC membrane and felt roof surfaces
  • Modular design allows reconfiguration on site if required
  • Compatible with most configurations of flat roofs up to 10° slope

EASE OF INSTALLATION

KeeGuard is modular design and features the unique Kee Klamp® open style fittings which allow quick installation of the horizontal rails and 100% recycled PVC counter weights. No welding, threading or bolting is required on site which enables fast and simple installation. KeeGuard® can be easily added to or dismantled and reassembled in different locations if required.

SETTING ROOFTOP SAFETY STANDARDS

KeeGuard® rooftop guardrail system is fully tested and meets or exceeds current rooftop safety requirements

  • EN ISO 14122 Part 3
  • EN 13374 Class A
  • HSG-33 Health & Safety in Roof Work
  • HSE INDG 284 “Working on roofs”
  • BS 6399: Part 2 1995 Wind Code

Click here to visit our You Tube channel to see KeeGuard® in action.

ANNUAL INSPECTION AND RECERTIFICATION

Fall protection systems must be maintained and examined at least once a year as outlined in standards and legislation such as EN 365, EN 795 and BS 7883. Visit our Recertification page to find out more and to watch our short video infographic explaining the importance of annual inspection and recertification.
