Slope Mounted Roof Anchors

Cost effective pitched roof safety solution

Additional Photos


The Roof Edge Fabrications range of permanently fixed roof anchors provides an easy to install, cost effective solution for pitched roof safety.

The range features the standard roof mounted anchor which is designed for varying beam sizes.

Roof Edge Fabrications’ slope mounted anchors are independently tested to EN 795, EN 517 and CE approved to PPE (Personal Protective Equipment) Directive.

  • Allows safe and secure work on all sloping roof
  • Cost effective alternative to scaffolding
  • Permanent and secure anchor point
  • External lead slate piece allows thermal movement and protects against water ingress
  • Suitable for most roofs including slated, tiled, metal tiled and metal clad
  • Top fix for cladded roofs provides the ideal alternative to life line systems when cost is an issue


Roof Edge Fabrications’ range of roof anchors are easy and quick to install directly to the building’s support structure and are designed for single user application only.

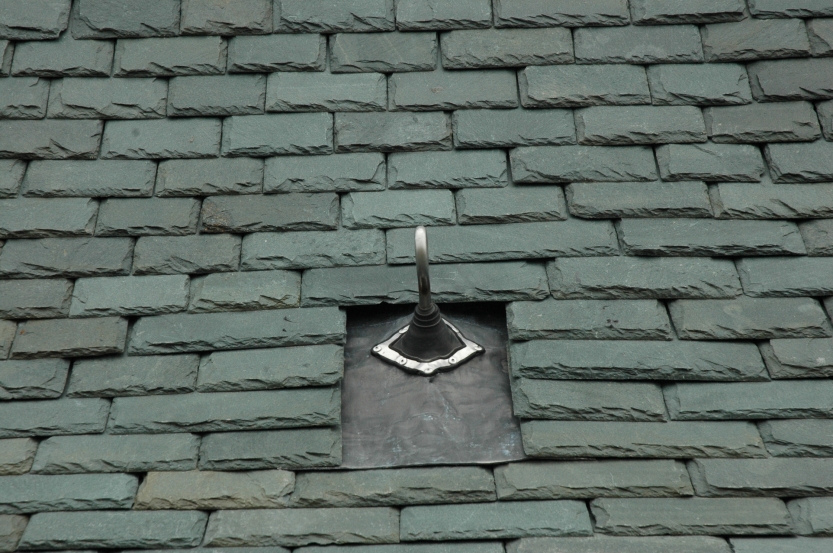

The slope mounted roof anchor is suitable for installation on most types of roof support and allows contractors to attach a safety lanyard to a secure anchor point. The anchor is specially designed to be mounted on the slope of the roof, which enables the anchor to be fixed next to the access point.

The slope mounted roof anchor can be adjusted to fit a wide range of trusses from 45mm x 97mm up to 75mm x 250mm and includes an external lead slate piece which ensures the integrity of the building envelope once the anchor has been installed.


The Roof Edge Fabrications range of Slope Mounted Roof Anchors are fully tested and meet or exceed current safety standards

  • BS EN 795
  • BS EN 517
  • BS 7883
  • ISO 14567


Fall protection systems must be maintained and examined at least once a year as outlined in standards and legislation such as EN 365, EN 795 and BS 7883. Visit our Recertification page to find out more and to watch our short video infographic explaining the importance of annual inspection and recertification.
