Rooftop Guardrail

Collective Edge Protection for Metal Roofs

Additional Photos

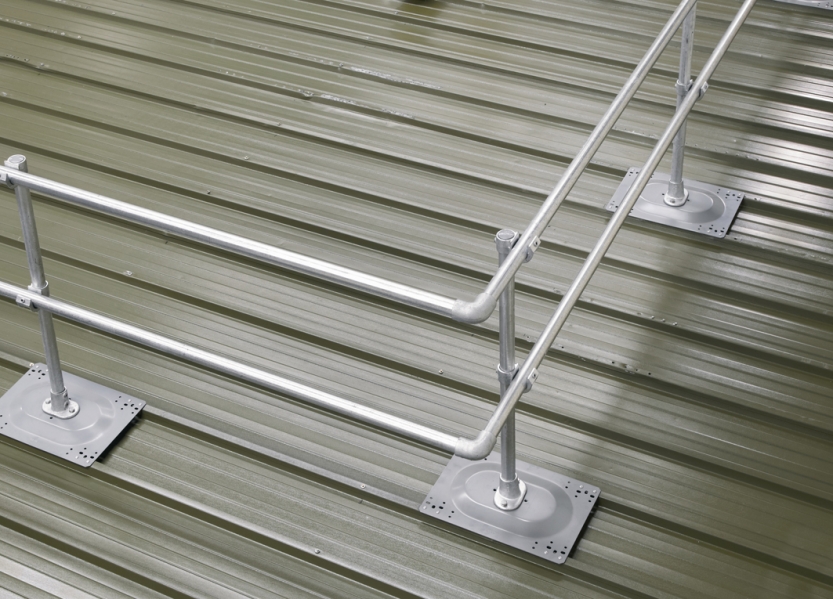

KeeGuard® Topfix provides collective edge protection for metal profile and standing seam roofs up to 45°.

The guardrail system is available in galvanised steel and aluminium finish and comprises a specially designed powder coated base plate with multiple fixing centres which enables the systems to be installed on a wide variety of roofs.

  • Collective protection for metal roofs
  • Modular ‘off the shelf’ system
  • Available in galvanised steel or aluminium finish
  • Non-penetrative solution for standing seam roofs
  • Watertight fixings for metal profile roofs
  • Complies with the test requirements of EN 14122 pt.3 and EN 13374 Class A


KeeGuard® Topfix is an ‘off the shelf’ product which makes specification easier and removes the need to fabricate a different solution for each site, minimising site visits and down time.

The base plate is fixed directly to the profile sheeting using non-penetrative 2 part clamps. Rivets and butyl sealing strip are used to fix the system to profile roofs, ensuring minimal penetration so maintaining the roof’s integrity.

KeeGuard® Topfix features preassembled uprights and open cup fittings which enable quick installation and easily accommodates ridges, valleys, corners, changes in level and self closing gates using standard Kee Klamp® fittings.


  • Complies with the test requirements of BS EN 14122 part 3 and BS EN 13374 Class A, bay sizes for galvanised EN 14122 are 2.5m (1.75m end bays)


Fall protection systems must be maintained and examined at least once a year as outlined in standards and legislation such as EN 365, EN 795 and BS 7883. Visit our Recertification page to find out more and to watch our short video infographic explaining the importance of annual inspection and recertification.
